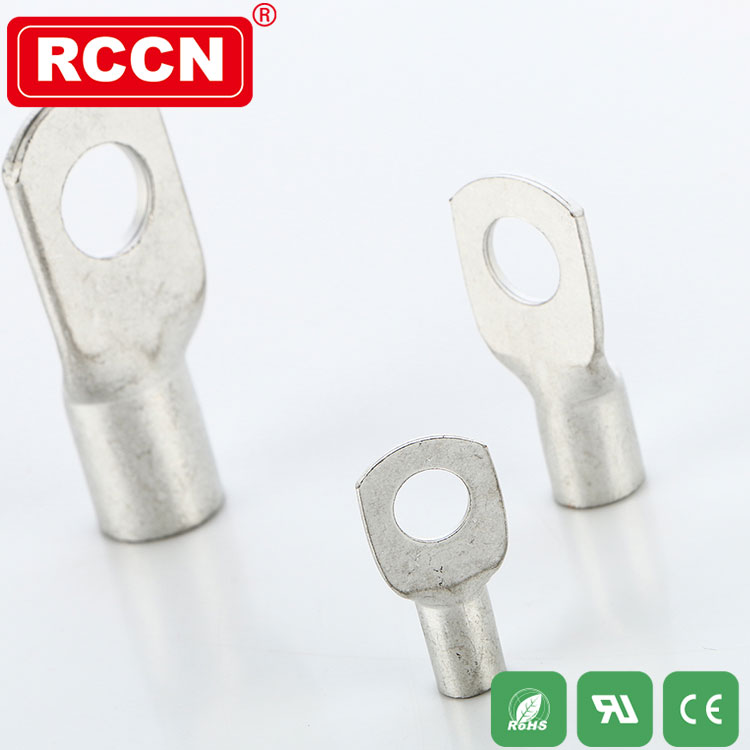

RCCN Terminals SC

Copper Ture Terminals

Use note:this series installed by tool of YYT

Specification

Item No. E W B L
SC1.5-3 3.2 3.7 1.8 8 5 16
SC1.5-4 4.2 3.7 1.8 8 5 16
SC1.5-5 5.2 3.7 1.8 10 5 17
SC1.5-6 6.5 3.7 1.8 10 5 18
SC2.5-4 4.2 4 2.4 8 7 18
SC2.5-5 5.2 4 2.4 10 7 20
SC2.5-6 6.5 4 2.4 10 7 20
SC2.5-8 8.4 4 2.4 12.5 7 23
SC4-4 4.2 4.8 3.1 10 7 20
SC4-5 5.2 4.8 3.1 10 7 20
SC4-6 6.5 4.8 3.1 10 7 20
SC4-8 8.4 4.8 3.1 12.5 7 23
SC6-4 4.2 5.5 3.8 10 9 24
SC6-5 5.2 5.5 3.8 10 9 24
SC6-6 6.5 5.5 3.8 12 9 24
SC6-8 8.4 5.5 3.8 12.5 9 26
SC6-10 10.5 6.2 4 15 9 28
SC10-5 5.2 6.2 4.5 12 9 25
SC10-6 6.5 6.2 4.5 12 9 25
SC10-8 8.4 6.2 4.5 12.5 9 27
SC10-10 10.5 6.2 4.5 15 9 29
SC10-12 13 6.2 4.5 17 9 31
SC16-5 5.2 7.1 5.4 12 12 30
SC16-6 6.5 7.1 5.4 12 12 30
SC16-8 8.4 7.1 5.4 12.5 12 30
SC16-10 10.5 7.1 5.4 16 12 33
SC16-12 13 7.1 5.4 17 12 35
SC25-5 5.2 8.8 6.8 13 12 33
SC25-6 6.5 8.8 6.8 13 12 33
SC25-8 8.4 8.8 6.8 15 12 33
SC25-10 10.5 8.8 6.8 18 12 34
SC25-12 13 8.8 6.8 18 12 35
SC25-14 15 8.8 6.8 20 12 38
SC35-5 5.2 10.6 8.2 16 14 38
SC35-6 6.5 10.6 8.2 16 14 38
SC35-8 8.4 10.6 8.2 16 14 38
SC35-10 10.5 10.6 8.2 18 14 39
SC35-12 13 10.6 8.2 19 14 40.5
SC35-14 15 10.6 8.2 20 14 42
SC50-6 6.5 12.4 9.5 17.8 16 45
SC50-8 8.4 12.4 9.5 17.8 16 45
SC50-10 10.5 12.4 9.5 17.8 16 45
SC50-12 13 12.4 9.5 20 16 45
SC50-14 15 12.4 9.5 22 16 46
SC50-16 17 12.4 9.5 24 16 47
SC70-8 8.4 14.7 11.2 21 20 52
SC70-10 10.5 14.7 11.2 21 20 52
SC70-12 13 14.7 11.2 21 20 52
SC70-14 15 14.7 11.2 21 20 52
SC70-16 17 14.7 11.2 25 20 53
SC95-8 8.4 17.4 13.5 25 23 58
SC95-10 10.5 17.4 13.5 25 23 58
SC95-12 13 17.4 13.5 25 23 58
SC95-14 15 17.4 13.5 25 23 58
SC95-16 17 17.4 13.5 25 23 58
SC120-8 8.4 19.4 15 28 22 63
SC120-10 10.5 19.4 15 28 22 63
SC120-12 13 19.4 15 28 22 63
SC120-14 15 19.4 15 28 22 63
SC120-16 17 19.4 15 28 22 63
SC120-20 21 19.4 15 28 22 63
SC150-8 8.4 21.2 16.5 30.5 26 70
SC150-10 10.5 21.2 16.5 30.5 26 70
SC150-12 13 21.2 16.5 30.5 26 70
SC150-14 15 21.2 16.5 30.5 26 70
SC150-16 17 21.2 16.5 30.5 26 70
SC150-20 21 21.2 16.5 30.5 26 70
SC185-10 10.5 23.5 18.5 34 32 75
SC185-12 13 23.5 18.5 34 32 75
SC185-14 15 23.5 18.5 34 32 75
SC185-16 17 23.5 18.5 34 32 75
SC185-20 21 23.5 18.5 34 32 75
SC240-10 10.5 26.5 21 38.5 38 90
SC240-12 13 26.5 21 38.5 38 90
SC240-14 15 26.5 21 38.5 38 90
SC240-16 17 26.5 21 38.5 38 90
SC240-18 19 26.5 21 38.5 38 90
SC240-20 21 26.5 21 38.5 38 90
SC300-10 10.5 30 23.5 43 42 98
SC300-12 13 30 23.5 43 42 98
SC300-14 15 30 23.5 43 42 98
SC300-16 17 30 23.5 43 42 98
SC300-20 21 30 23.5 43 42 98
SC400-10 10.5 36.5 28.5 52 44 110
SC400-12 13 36.5 28.5 52 44 110
SC400-14 15 36.5 28.5 52 44 110
SC400-16 17 36.5 28.5 52 44 110
SC400-20 21 36.5 28.5 52 44 110
SC500-10 10.5 39 30 56 48 120
SC500-12 13 39 30 56 48 120
SC500-14 15 39 30 56 48 120
SC500-16 17 39 30 56 48 120
SC500-20 21 39 30 56 48 120
SC630-10 10.5 45 35 65 56 140
SC630-12 13 45 35 65 56 140
SC630-14 15 45 35 65 56 140
SC630-16 17 45 35 65 56 140
SC630-20 21 45 35 65 56 140
