RCCN Wire saddle MWS

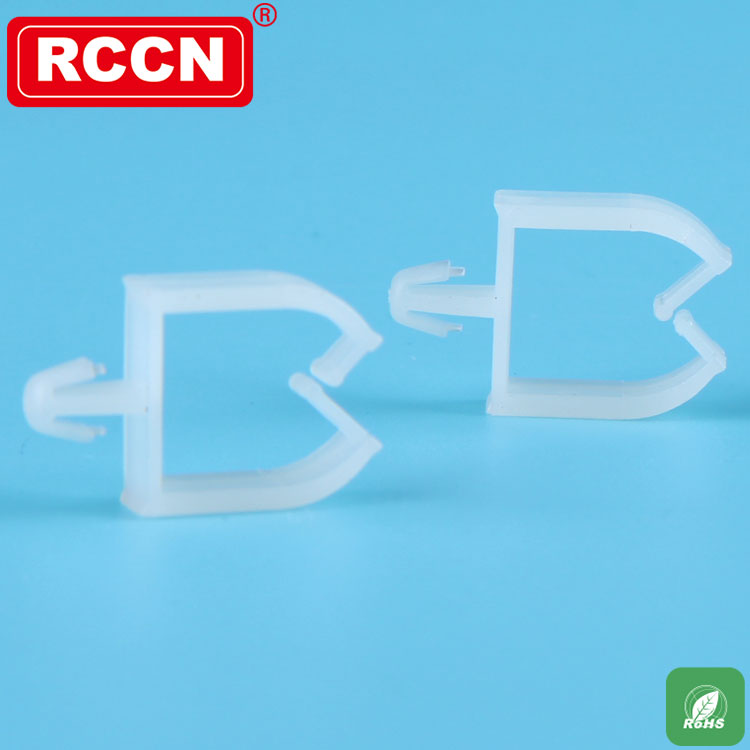

Narrow Wire Saddle-Arrowhead MWS

Material:UL approved NYLON66(natural),fireproof 94V-2,
good insulation,good aging resistant.
The difference between this product abd MWS-1A/B1 lies in the hole is 3.5



Specification

Item No. A B Hole dia. Board thickness Packing
MWS-A-7.3 7.3 6.7 3.0 1.6 1000pcs
MWS-A-9.1 9.1 8.2 3.0 1.6
MWS-A-11.2 11.2 9.4 3.0 1.6
MWS-A-13.0 13.0 9.4 3.0 1.6
MWS-B-7.3 7.3 6.7 3.0 2.4
MWS-B-9.1 9.1 8.2 3.0 2.4
MWS-B-11.2 11.2 9.4 3.0 2.4
MWS-B-13.0 13.0 9.4 3.0 2.4



Item No. A B Hole dia. Board thickness Packing
MWS-A2-7.3 7.3 6.7 3.5 1.6 1000pcs
MWS-A2-9.1 9.1 8.2 3.5 1.6
MWS-A2-11.2 11.2 9.4 3.5 1.6
MWS-A2-13.0 13.0 9.4 3.5 1.6
MWS-B2-7.3 7.3 6.7 3.5 2.4
MWS-B2-9.1 9.1 8.2 3.5 2.4
MWS-B2-11.2 11.2 9.4 3.5 2.4
MWS-B2-13.0 13.0 9.4 3.5 2.4
