RCCN Brass Cable Gland MG

New Product:Metal cable waterproof connector

Thread Size: M / PG / NPT / G

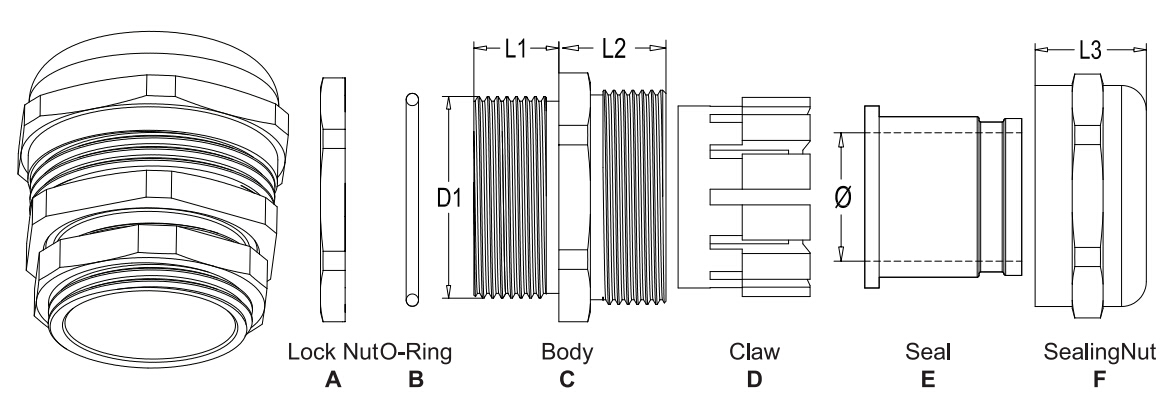

Material: A.C.F Brass nickel-plated D NBR B. E eye rubber.
Product Certification: European CE, ROHS
Operating Temperature: Static -40 ° C to 100 ° C
Degree of protection: in the provisions of the bayonet range, and the use of O-ring tightening tight head.

Specification





公制螺纹

德制螺纹

PG

美制螺纹

 NPT

英制螺纹

 G

适用电缆

 Cable

 Range

标准型号

螺纹长度

加长型号

螺纹长度

接合长度

Joint

Length

L2+L3

板手

Spanner

SW

A/F

   L1  L1
MG12×1.5-6.5 MG-PG7-6.5 MG-NPT1/4-6.5 MG-G1/4-6.5 3-6.5 6 12 18 14
MG12×1.5-8 3-6.5 6 12 18 16
MG16×1.5-8 MG-PG9-8 4-8 7 12 20 18
MG16×1.5-10 6-10 7 12 21 20
MG18×1.5-10 MG-PG11-10 MG-NPT3/8-10 MG-G3/8-10 6-10 7 12 21 20
MG20×1.5-12 MG-PG13.5-12 MG-NPT1/2-12 MG-G1/2-12 8-12 8 12 22 22
MG20×1.5-14 10-14 8 12 23 24
MG22×1.5-14 MG-PG16-14 MG-NPT1/2-14 MG-G1/2-14 10-14 8 12 23 24
MG24×1.5-16 10-16 9 13 25 28
MG25×1.5-16 10-16 9 13 25 28
MG25×1.5-18 MG-PG21-18 MG-NPT3/4-18 MG-G3/4-18 13-18 9 13 25 30
MG27×2.0-18 13-18 9 13 25 30
MG30×2.0-18 13-18 11 15 25 32
MG30×2.0-20 15-20 11 15 25 32
MG32×1.5-18 13-18 11 15 25 32
MG32×1.5-22 16-22 11 15 26 34
MG32×1.5-25 18-25 11 15 30 36
MG36×1.5-25 MG-PG29-25 MG-NPT1-25 MG-G1-25 18-25 11 15 30 40
MG40×1.5-28 22-28 11 15 31 45
MG40×1.5-30 MG-NPT1-1/4-30 MG-G1-1/4-30 22-30 11 15 35 45
MG42×2.0-30 22-30 11 15 31 45
MG40×1.5-32 MG-PG36-32 MG-NPT1-1/4-32 MG-G1-1/4-32 22-32 11 15 35 50
MG48×2.0-32 22-32 11 15 35 50
MG50×1.5-36 MG-NPT1-1/2-36 MG-G1-1/2-36 28-36 11 15 38 54
MG50×1.5-38 MG-PG42-38 MG-NPT1-1/2-38 MG-G1-1/2-38 32-38 11 15 38 54
MG54×2.0-38 MG-PG42-38    32-38 11 15 38 57
MG-PG42-38    32-38 11 15 38 58
MG60×2.0-44 MG-PG48-44 MG-NPT2-44 MG-G2-44 37-44 14 18 40 64
MG63×1.5-44 37-44 14 18 40 68
MG72×2.0-52 42-52 15 20 40 76
MG75×2.0-55 MG-NPT2-1/2-55 MG-G2-1/2-55 50-55 15 20 40 80
MG80×2.0-60 55-60 20 25 40 84.5
MG88×2.0-70 65-70 20 25 40 92.5
MG90×2.0-70 65-70 20 25 40 96
